Majestic Meridian Platinum 42 Direct Vent Gas Fireplace - MERIDPLA42

This Meridian Platinum Fireplace Instant warmth and comfort leave time for the important things in your life. Meridian series gas fireplaces come alive as flames swirl around split logs. A crisp and clean interior makes these fireplaces inviting, whether they’re burning or not. Easily customize your Meridian series and for more ambiance and bigger flames, upgrade to the Meridian Platinum.

The Platinum Direct Gas Fireplace isn’t just for exterior walls. A fan-powered accessory with slim venting can zigzag throughout your home—up, down, over, or under – making it possible to install a gas fireplace virtually anywhere. This ensures safe fireplace operation and the best flames. Check with your local hearth professional to determine if your home or fireplace could benefit from power venting technology.

 Features:

• Two fronts, three finish options
• Choices of interior brick panels or reflective black glass (required)
• Taller viewing area
• Ceramic glass for more radiant heat
• Up to 40,000 BTUs
• Select from the intelliFire app, touchscreen remote or wireless wall switch for the solution that fits your life
• Optional fan
• Limited lifetime warranty

SPECIFICATIONS

Product Brochure

Installation Manual

Technical Specifications



Fuel Type:	Gas
Vent Type:	Direct-Vent
Vent Size:	5x8
Ignition Type:	Electronic
Installation Type:	Zero-Clearance
Style:	Traditional
Vent Inner Diameter:	5 Inches
Vent Outer Diameter:	8 Inches
Weight:	175 lbs.
Model:	Natural Gas (NG)	Propane (LP)
Max. (BTU/HR):	40,000 BTU's	37,000 BTU's
Min. (BTU/HR):	20,000 BTU's	21,000 BTU's

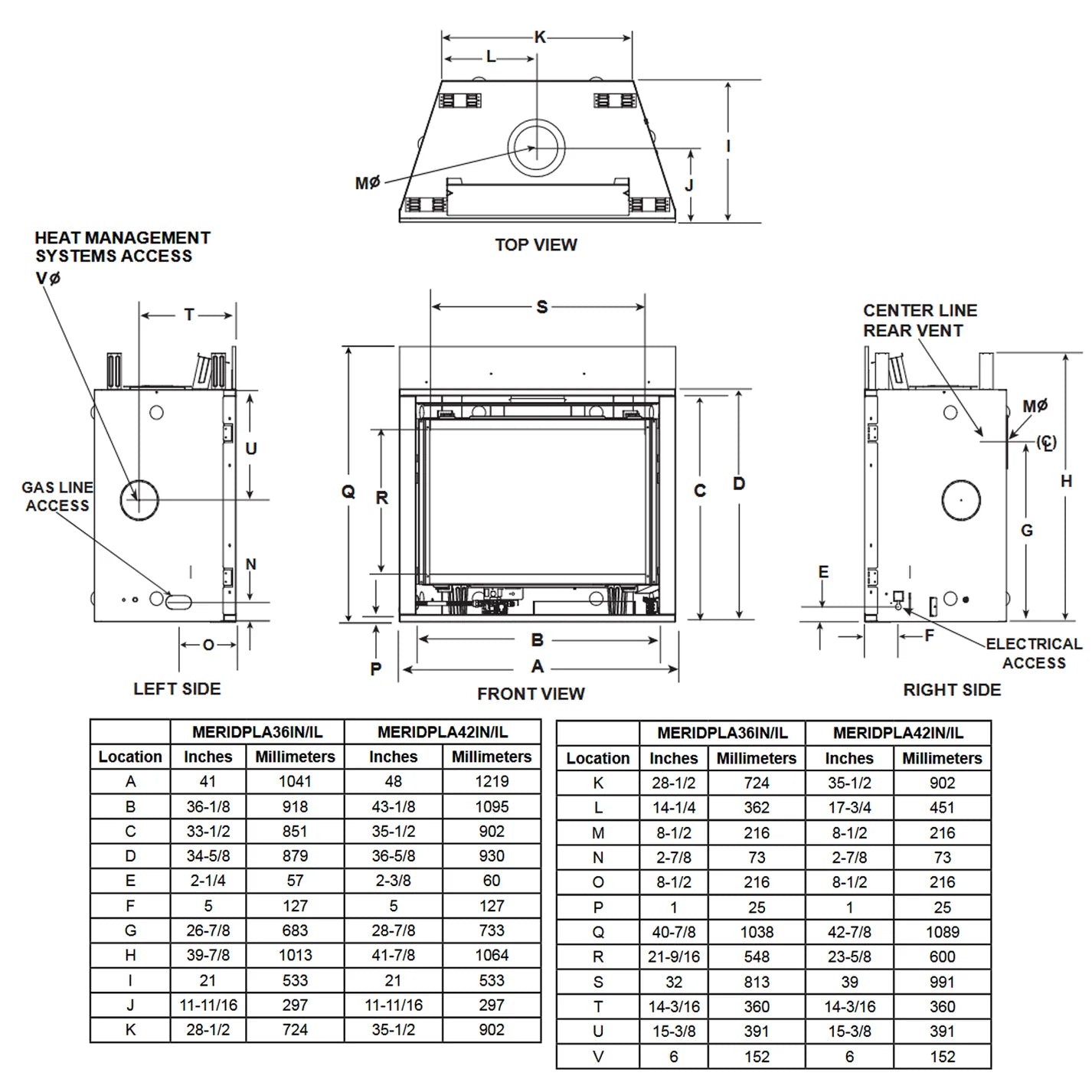

Actual Dimensions
Height	Width	Depth
427/8"	48"	21"

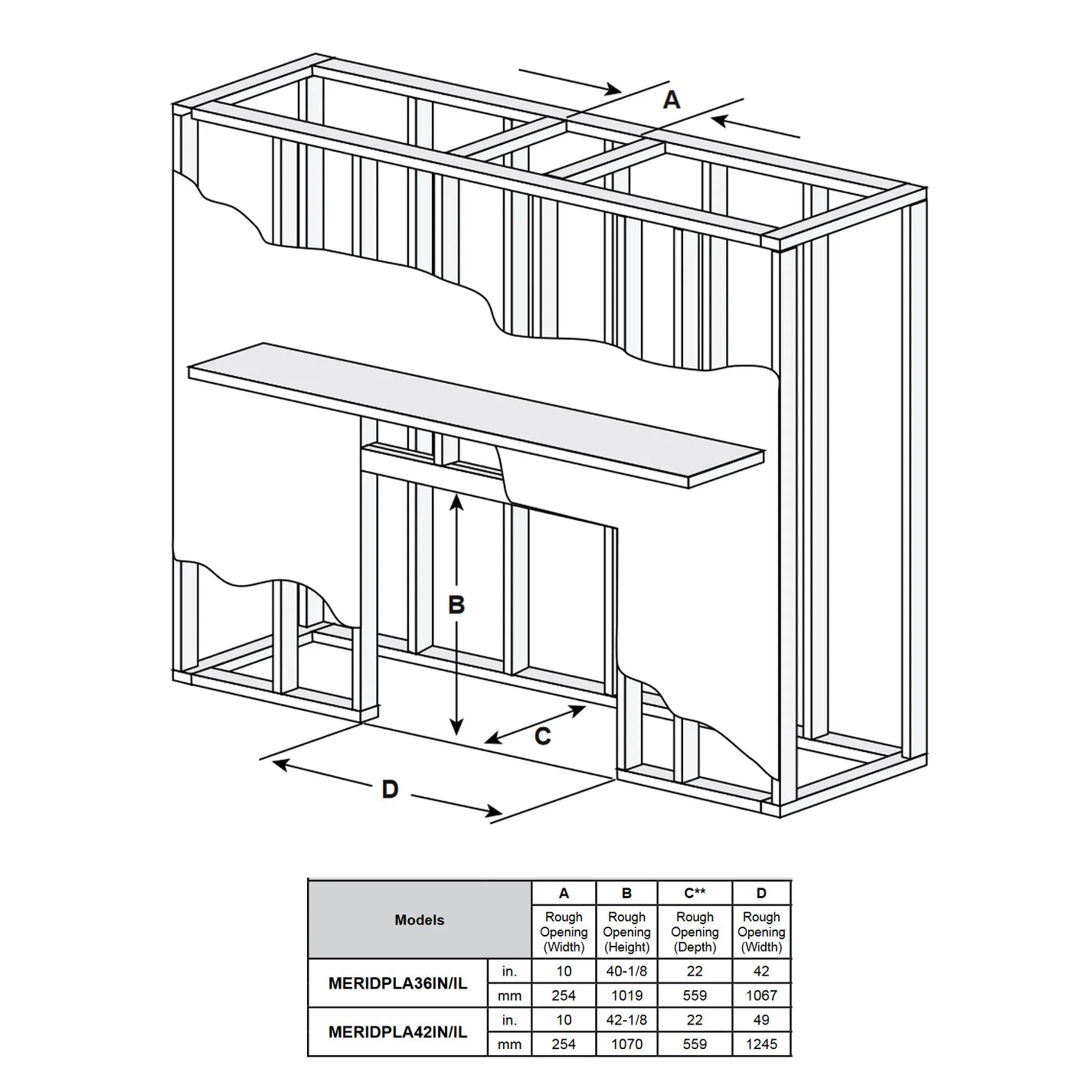

Framing Dimensions
Height	Width	Depth
421/8"	49"	22"



ACCESSORIES

ACCESSORIES THAT FIT YOUR HOME AND LIFESTYLE
TO ORDER ACCESSORIES LOOK UNDER RELATED PRODUCTS BELOW

FRONTS (Required to Complete Installation)
Front options and colors offer a tailored appearance to any hearth.

Contemporary Rectangular Door (Non-Operable) with Option of 3 Different Finishes

Black


Bronze


Pewter

Decorative Mesh Front Black



Decorative Mesh Front (Black Finish Only)

Interior Panel Options (Required to Complete Installation)
Customize the interior of your fireplace with this alternative style of decorative lining.

Tavern Brown Traditional Firebrick



Tavern Brown Herringbone Firebrick



Cottage Red Firebrick



Reflective Black Glass Interior


Fan Kit

Fan kit extends the heating range of your fireplace.





Remote Control and Wall Switch Options:
IntelliFire Touch RC150

Features a simple, single mode function and is specifically designed for wall placement,
ensuring a great fire is just a flip of the switch away. Features battery strength indicator,
automatic battery backup, on/off.

Features: On/Off, Automatic Battery Backup, Battery Strength Indicator, Cold Climate

IntelliFire Touch RC400

A large LCD screen and simple navigation provide easy operation.
Feel confident knowing alerts and notifications will appear when needed.
The RC400 acts as a thermostat and can be used as a remote, or docked on the wall.

Features: on/off, flame height adjustment, lights adjustment, thermostat mode,
room temperature readout, child lock, timer mode, automatic battery backup,
cold climate mode, power vent, and wall-docking station.
