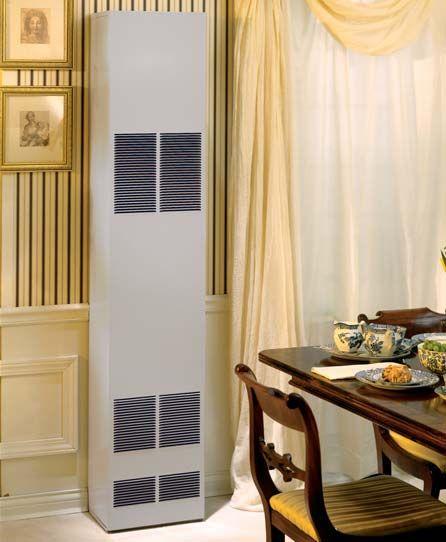

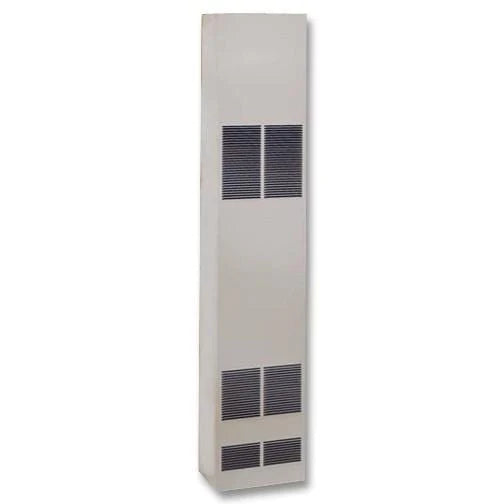

Empire Wall Furnace, DV Counterflow, 24V without Thermostat, 35,000 Btu/Electronic Pilot
These Empire Heating Systems Direct-Vent Counterflow Wall Furnaces may be recessed between standard wall studs and can be installed on an outside wall. Provides total comfort for a fraction of the cost of electric heat.
Matchless pushbutton piezo ignition for manual operation; also works with optional thermostats or other remote controls. Front panels remove for cleaning and servicing. Counterflow design circulates warm air at floor level.
| Specifications |
Details |
| Color Cabinet and Front Panels |
Beige |
| BTU Input |
35,000 |
| Blower Output Cu. Ft./Min |
275 |
| Width |
14 1/8” |
| Depth |
10 3/8” |
| Height |
72 1/2” |
| Shipping Weight (lb) |
115 |
| Works with |
Manual Toggle Switch, Thermostat Wall Switch, Remote Control |
| Minimum Clearances to Combustibles (From Top to Ceiling) |
4” |
| Minimum Clearances to Combustibles (From Each Side) |
4” and 18” with SOR1 |
| Bottom of Unit to Wood Floor |
Zero |
| Depth Unit May Be Recessed |
9 1/2” |
| Type of Gas (State on Order) |
Natural Gas / Propane |
| Iron Pipe Size (N.P.T.) |
1/2” |
| Wall to Valve Inlet |
7 3/4” |
| Floor Covering to Valve Inlet |
4” |
| Wall Depth (Minimum) |
3/4” |
| Wall Depth (Maximum) |
10” |
| Vent Opening (Inside Wall Surface) |
7 1/2” Diameter |
| Vent Opening (Outside Wall Surface) |
7 1/2” Diameter |
| Center of Vent to Nearest Outside Corner of Building |
12” |
| Edge of Vent to Nearest Projecting Surface |
6” |
| Vent Projection from Outside Wall |
6” |
| Center of Flue to Floor Covering |
59 1/4” |
| Safety Controls |
Pilot and Main Burners Include Automatic Shut-off |
| Warranty |
10-year limited (combustion chamber), 1-year limited (all other parts) |
Features:
- DVC35SPP/ DVC35IP (35,000 Btu) recesses between standard Wall Studs
- Thermostat not included
- Choose Standing Pilot or Electronic Intermittent Pilot (saves even more energy)
- Front Panels Removed for Cleaning and Servicing
- Counterflow Blower Circulates Warm Air at Floor Level
- Multi-Room Heating Capacity with Optional Outlet Kits
- Up to 76% A.F.U.E. efficient
- Made in the USA
Options & Accessories
TRW Wireless Remote Wall Thermostat
- This convenient wall thermostat puts you in control, allowing you to adjust your gas log settings from an easily accessible wall switch. Empire Comfort Systems makes your life simple with the added luxury of fireplace accessories that improve the quality of your gas log experience.
TDV1 Temperature Wall T-Stat-Digital, High-Efficient Wall Furnace Control Options
- Wall Thermostat, Digital, Wire
Features:
- Type: Digital Wire Wall Thermostat
- Weight: 1.00 lbs
T24V 24-Volt Wall Thermostat
- Thermostats make a heating appliance more efficient, precise, and easily controlled. That's the concept behind this Empire 24-Volt Wall Thermostat, too. It takes your Empire High-Efficiency Direct Vent Wall Furnace and makes it a more accurate and effective heating tool in your home. Get everything you want out of your favorite appliance by adding this simple thermostat to the mix.
VSK2 Vinyl Siding Kit
- This vinyl siding vent kit installs on virtually any type of home providing a smart clean look to finish off your exterior vent. Its new slim-line look offers a less intrusive view of the outside of your home.
- Includes Siding Kit Only. includes outside wall plate with vent shield. Does not include a vent tube, cap, or wall plate.
DV822 Vinyl Siding Vent-Kit
- This vent kit installs on a vinyl-sided home. It provides a clean look to finish off your exterior vent. This item is only the Vinyl Siding Vent Kit. It does not include a vent cap.
- The Vinyl Siding Vent Kit is for use with Empire Direct-Vent Wall Furnaces.
SOK1 10" Side Outlet Kit
- For both direct vent and conventional vent counterflow wall furnaces, this side outlet kit allows heat to disperse from the side of the furnace cabinet. It does require the side outlet register (SOR-1 sold separately) to redirect the heat flow.
SOR1 Side Outlet Register
- Empire Direct Vent Counterflow Furnace Side Outlet Register
Features:
- Type: Register
- Side Outlet Register
- Fits: DVC-35SPP, DVC-35IP, DV-55SPP, and DV-55IP
Conversion Kits
- Model DV1348: For use with DVC35IPX Converts Natural Gas units into Liquid Propane
-
Model DV1350: For use with DVC35IPX Converts Liquid Propane Unit into Natural Gas
