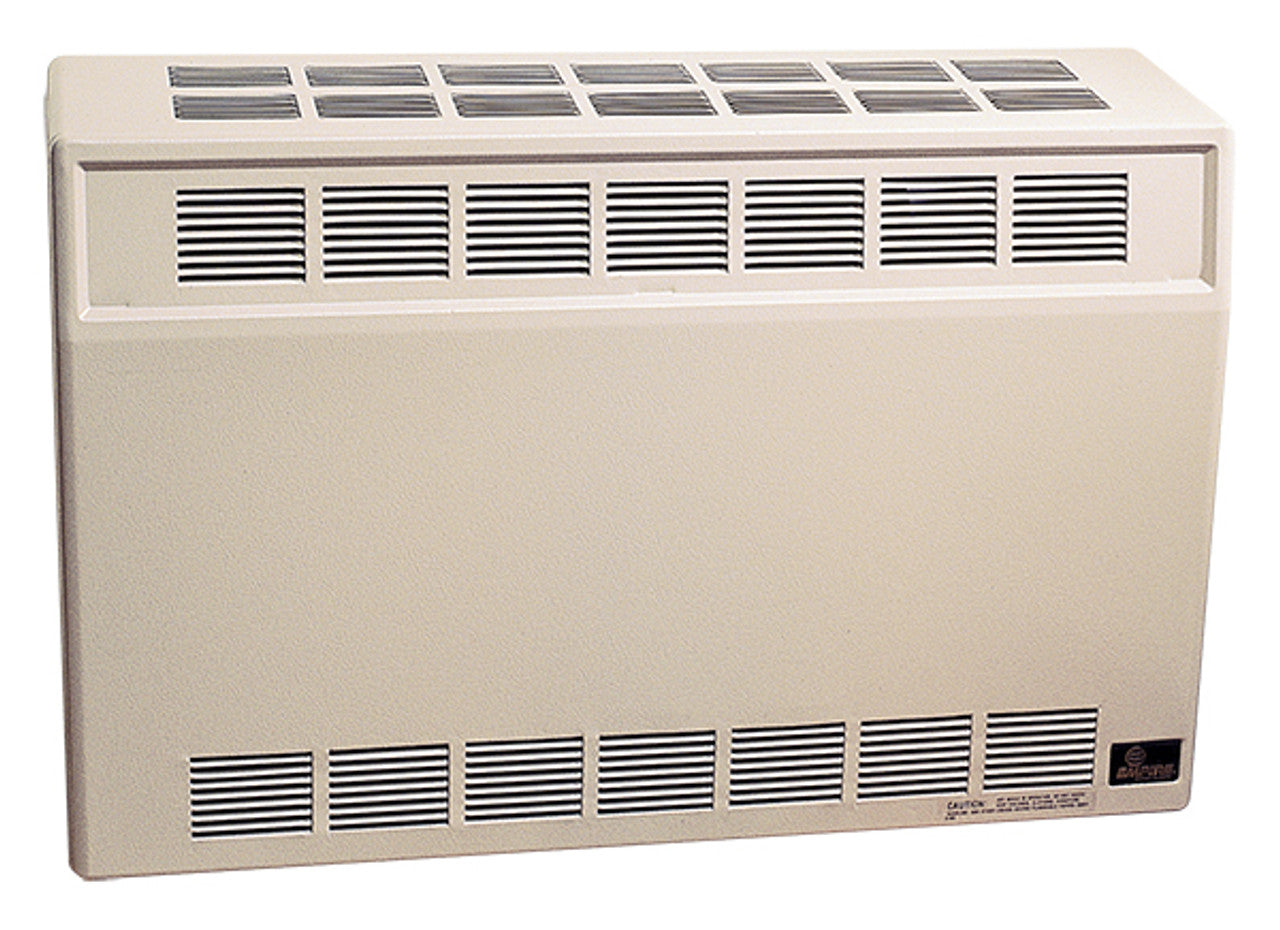

Empire Wall Furnace, DV, MV with Thermostat, 25,000 Btu
Empire offers Direct-Vent Furnaces for single rooms and entire houses, making it the perfect solution for any heating needs. These wall furnaces are specifically designed for areas without flues or chimneys.
Easily clean and maintain with removable front panels. Using outside air for combustion, the warm air is circulated in a sealed chamber to heat the room efficiently. Enjoy clean and effective heating with Empire.
| Specification |
Details |
| Color Cabinet and Front Panels |
Beige |
| BTU Output |
25,000 |
| Width |
37” |
| Depth |
11 1/2” |
| Height |
27 3/4” |
| Shipping Weight (Two Cartons) |
98 lb. |
| Works with |
Manual Toggle Switch, Thermostat Wall Switch, Remote Control (TMV included) |
| Minimum Clearances to Combustibles (Top) |
48” |
| Minimum Clearances to Combustibles (Each Side) |
6” |
| Bottom of Unit to Floor Covering |
4” |
| Type of Gas (Specify on Order) |
Natural Gas/Propane |
| Iron Pipe Size (N.P.T.) |
1/2” |
| Wall to Valve Inlet |
4” |
| Center of Vent to Valve Inlet (Left) |
17 11/16” |
| Wall Depth Minimum |
4 1/2” |
| Wall Depth Maximum |
See accessories for thicker walls (13”) |
| Vent Opening in Wall |
6 1/2” Diameter |
| Center of Vent to Nearest Outside Corner |
24” |
| Center of Vent to Nearest Opening (for Flue Gases) |
6” |
| Bottom of Vent Above Grade |
12” |
| Edge of Vent to Nearest Projecting Surface |
6” |
| Vent Projection from Outside Wall |
5” |
| Center of Flue to Floor Covering |
19 3/4” |
| Safety Controls |
Pilot and Main Burners include Automatic Shut-off |
Features:
- DV25SG (24,000 Btu LP and 25,000 Btu Natural) and DV35SG (35,000 Btu)
- Thermostat Included
- Console cabinet mounts on an outside wall
- Quiet operation
- Matchless piezo ignition (heats without electricity)
- Optional automatic blower
- Ideal for family room
- Made in the USA
Options & Accessories:
TRW Wireless Remote Wall Thermostat
- This convenient wall thermostat puts you in control, allowing you to adjust your gas log settings from an easily accessible wall switch. Empire Comfort Systems makes your life simple with the added luxury of fireplace accessories that improve the quality of your gas log experience.
TDV1 Temperature Wall T-Stat-Digital, High-Efficient Wall Furnace Control Options
- Wall Thermostat, Digital, Wire
Features:
- Type: Digital Wire Wall Thermostat
- Weight: 1.00 lbs
*For use with your Empire High-Efficiency PVS18 and PVS35 UltraSaver90 Plus Heating Systems.
TMV Wall Thermostat-Reed Switch
- Wall Thermostat - Reed Switch
Features:
- Type: Wall Thermostat - Reed Switch
- Weight: 1.00 lbs
DRB1 Automatic Blower
- The Empire DRB1 Automatic Blower increases the efficiency of your heater. This model is designed specifically for the models listed below. Blowers take the air warmed by the heater and help circulate it around the room more efficiently, increasing the effectiveness and range of the heater.
- The Empire DRB1 Automatic Blower is the perfect complement to your existing heating system.
Features:
- Type: Blower
- Weight: 8 lbs
- Automatically circulates heated air
VSK2 Vinyl Siding Kit Direct
- This vinyl siding vent kit installs on virtually any type of home providing a smart clean look to finish off your exterior vent. Its new slim-line look offers a less intrusive view of the outside of your home.
- Includes Siding Kit Only. includes outside wall plate with vent shield. Does not include a vent tube, cap, or wall plate.
Features:
- Type: Vent Kit
- Weight: 2.50 lbs
- Slim Vent Kit
- For Vinyl Siding Horizontal
- Model VSK2: for use with DV25SG and DV35SG By Empire Comfort System
DV822 Vinyl Siding Vent-Kit
- This vent kit installs on a vinyl-sided home. It provides a clean look to finish off your exterior vent. This item is only the Vinyl Siding Vent Kit. It does not include a vent cap.
- The Vinyl Siding Vent Kit is for use with Empire Direct-Vent Wall Furnaces.
- For use with Empire Round Vent Kit DVVK4RE
DVVK4RE Horizontal Vent Kit with Termination Cap
- A termination kit is required to finish off your direct vent fireplace. This termination kit can be used with either a top or rear vent installation with a horizontal exit.
Features:
- Horizontal fireplace direct vent kit
- For walls up to 13 3/4" thick
- Includes:
- one small round horizontal termination cap
- one outside mounting plate
- one 4" diameter flue tube
- one 6 5/8" inlet air tube
- one wall thimble
- one thimble extension
Conversion Kits
Models:
- Empire 17084 Nat to LP Conversion Kit.
- Empire 17085 LP to Nat Conversion Kit.
Features:
- Type: Conversion Kit
- Model 17084: Converts Natural Gas Unit into Liquid Propane
- Model 17085: Converts Liquid Propane Unit into Natural Gas
Manuals:
