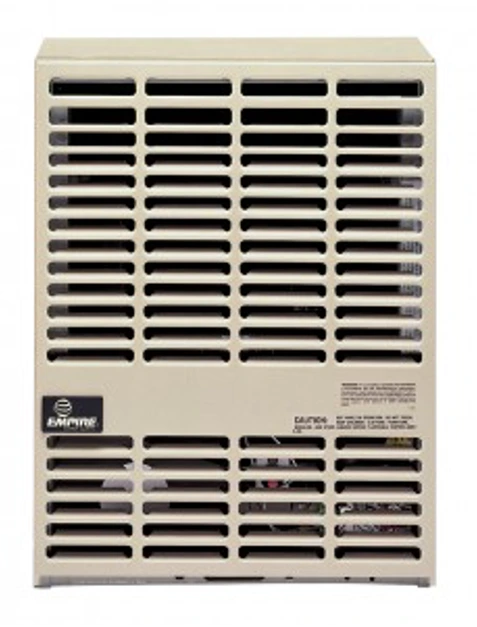

Empire Wall Furnace, DV, MV without Thermostat, 15,000 Btu
The DV210 is the ideal heater for warming your tiny spaces because it is comfortable, economical, and clean. The heater can be tucked away on an outside wall thanks to its small, slender form. All the normal safety measures you would expect from Empire Comfort Systems are included, along with quiet burners and unmatched piezo ignition.
Optional automated blowers are installed easily for more equal heat distribution. Wall furnaces are a great addition to any design; they are perfect for bedrooms or studies.
| Specification |
Details |
| Color Cabinet and Front Panels |
Beige |
| BTU Output |
15,000 |
| Width |
20 1/4” |
| Depth |
9 3/8” |
| Height |
24 7/8” |
| Shipping Weight (Two Cartons) |
60 lb |
| Control Options |
Manual Toggle Switch, Thermostat Wall Switch, Remote Control |
| Minimum Clearances to Combustibles (Top) |
12” |
| Minimum Clearances to Combustibles (Each Side) |
1” |
| Bottom of Unit to Floor Covering |
0” |
| Type of Gas (State on Order) |
Natural Gas/Propane |
| Iron Pipe Size (N.P.T.) |
1/2” |
| Wall to Valve Inlet |
6 3/16” |
| Right Side to Valve Inlet |
6 7/8” |
| Center of Vent to Valve Inlet |
N/A |
| Valve Inlet to Floor Covering |
2 11/16” |
| Wall Depth Minimum |
4 1/2” |
| Wall Depth Maximum |
13” (see accessories for thicker walls) |
| Vent Opening in Wall |
6 1/2” Dia. |
| Center of Vent to Nearest Outside Corner |
16” |
| Center of Vent from Openings for Flue Gases |
6” |
| Bottom of Vent Above Grade |
12” |
| Edge of Vent to Nearest Projecting Surface |
6” |
| Vent Projection from Outside Wall |
4” |
| Center of Flue to Floor Covering |
19 3/8” |
| Safety Controls |
Pilot and Main Burners with Automatic Shut-off |
Features:
- DV210SGX (10,000 Btu) and DV215SGX (15,000 Btu)
- Thermostat not included
- Slim, compact cabinet mounts on an outside wall.
- Quiet operation
- Matchless piezo ignition (heats without electricity)
- Optional automatic blower
- Ideal for bedrooms or studies
- Made in the USA
Options and Accessories:
TRW Wireless Remote Wall Thermostat
- This convenient wall thermostat puts you in control, allowing you to adjust your gas log settings from an easily accessible wall switch. Empire Comfort Systems makes your life simple with the added luxury of fireplace accessories that improve the quality of your gas log experience.
TDV1 Temperature Wall T-Stat-Digital, High-Efficient Wall Furnace Control
- Wall Thermostat, Digital, Wire
Features:
- Type: Digital Wire Wall Thermostat
- Weight: 1.00 lbs
TMV Wall Thermostat - Reed Switch
Features:
- Type: Wall Thermostat - Reed Switch
- Weight: 1.00 lbs
DVB1 Automatic Blower
- When you add an automatic blower to your direct vent furnace you are increasing the efficiency of your heater. A blower helps to circulate the warm, heated air to all corners of your space. This optional blower adds approximated 60 CFMs to quietly circulate the warm air further out from your heater, adding warmth throughout the room. It is for use with the Empire DV-210-SG and DV-215-SG Direct Vent Wall Furnaces
VSK1 Vinyl Siding Kit
- This vinyl siding vent kit installs on virtually any type of home providing a smart clean look to finish off your exterior vent. Its new slim-line look offers a less intrusive view of the outside of your home.
- Includes Siding Kit Only. includes outside wall plate with vent shield. Does not include a vent tube, cap, or wall plate.
DV822 Vinyl Siding Vent-Kit
- This vent kit installs on a vinyl-sided home. It provides a clean look to finish off your exterior vent. This item is only the Vinyl Siding Vent Kit. It does not include a vent cap.
- The Vinyl Siding Vent Kit is for use with Empire Direct-Vent Wall Furnaces.
DVVK4RE Horizontal Vent Kit with Termination Cap
- A termination kit is required to finish off your direct vent fireplace. This termination kit can be used with either a top or rear vent installation with a horizontal exit.
Features:
- Horizontal fireplace direct vent kit
- For walls up to 13 3/4" thick
- Includes:
- one small round horizontal termination cap
- one outside mounting plate
- one 4" diameter flue tube
- one 6 5/8" inlet air tube
- one wall thimble
- one thimble extension
TH357 Vent Extension Kit for walls 13" to 19"
- You can trust and enjoy the service of your gas furnace more when it is properly vented. Empire's flue outlet vent tube makes this possible even with walls between 13-19 inches in thickness. It becomes an essential venting if you have super thick walls or other space challenges or restrictions. This extension tube is specifically made for the Empire DV215SG gas furnace installations. Safe and economical venting is a win-win for the conscientious homeowner.
Features:
- Type: Extension Tube
- Weight: 1.00 lbs
- Extends the flue outlet vent tube to fit walls from 13" to 19"
- For use in Empire DV215SGX Natural gas furnace installations
TH358 Vent Extension Kit for walls 13" to 19"
- You can trust and enjoy the service of your gas furnace more when it is properly vented. Empire's flue outlet vent tube makes this possible even with walls between 13-19 inches in thickness. It becomes an essential venting if you have super thick walls or other space challenges or restrictions. This extension tube is specifically made for the Empire DV215SG Liquid Propane furnace installations. Safe and economical venting is a win-win for the conscientious homeowner.
Features:
- Type: Extension Tube
- Weight: 2.00 lbs
- Extends the flue outlet vent tube to fit walls from 13" to 19"
- For use in Empire DV215SGX Liquid Propane furnace installations
Conversion Kit
- Model 17082: Converts Natural Gas Unit into Liquid Propane
- Model 17083: Converts Liquid Propane Unit into Natural Gas
Manuals:
PRODUCT DESCRIPTION
