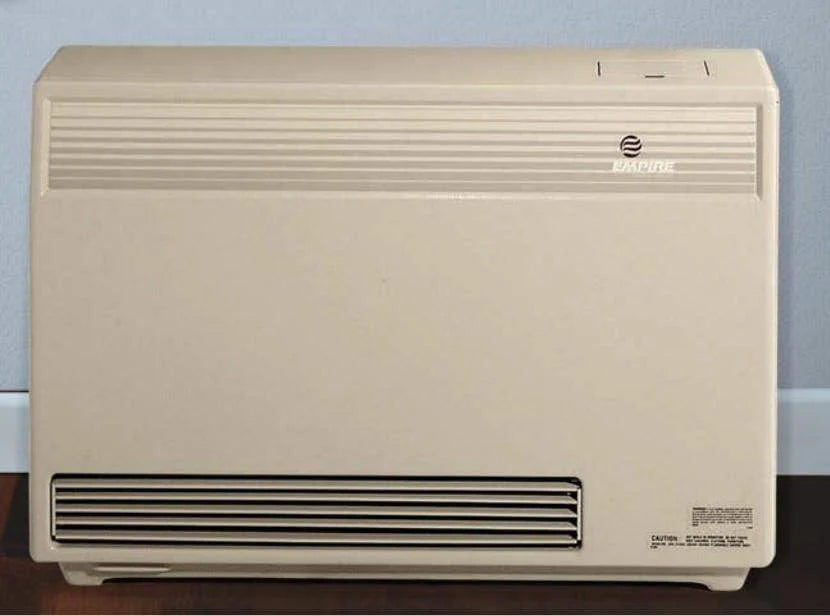

Empire Wall Furnace, High Efficient DV, Thermistor, Electronic Ignition, 40,000 Btu
The Empire High-Efficiency Direct Vent Wall Furnace's stylish design adds a modern touch to any space. Their distinctive design makes them easy to use and space-efficient, meeting or surpassing all temperature tests conducted by the American National Standards Institute. They also have a cool touch.
You may easily turn to your desired temperature range by flipping the switch to "ON" and opening the top-mounted control compartment. Empire provides the only high-efficiency wall furnaces with set-it-and-forget-it heating control that may be used with optional 24-volt or wireless remote wall thermostats.
| Specification |
Details |
| Color (Cabinet and Front Panels) |
Beige |
| BTU Input |
40,000 |
| BTU Output |
32,600 |
| Width |
37” |
| Depth |
15 3/4” |
| Height |
26” |
| Shipping Weight (Two Cartons) |
135 lb |
| Electronic Control |
Yes |
| Blower (Tangential Type, One Speed) |
350 cfm |
| Minimum Clearances to Combustibles (From Top) |
10” |
| Minimum Clearances to Combustibles (From Left Side) |
3” |
| Minimum Clearances to Combustibles (From Right Side) |
10” |
| Right Side Clearance (Suggested for Serviceability) |
3” |
| Bottom of Unit to Floor Covering |
0” |
| Type of Gas |
Natural Gas/Propane (State on Order) |
| Iron Pipe Size (N.P.T.) |
1/2” |
| Wall Depth (Minimum) |
4 1/2” |
| Wall Depth (Maximum) |
See accessories for thicker walls 13” |
| Vent Opening in Wall |
3 1/2” Dia. |
| 15’ with 2 Elbows |
Yes |
| 10’ with 3 Elbows |
Yes |
| Safety Controls |
Automatic Shut-off for Main Burner |
| Over Temperature |
Safety Limit Switch |
Features:
- State-of-the-Art Technology: Ensures Exceptional
- Fuel-Efficient
- Electronic Thermistor Thermostat Maintains
- Temperature Range
- Standard Wall Thermostat Hook-up Accepts Any
- 24-Volt Wall Thermostat – Including Efficient
- Programmable Thermostats (purchased separately)
- Total Comfort for a Fraction of the Cost of Electric Heat
- Sealed Combustion Chamber Maintains Indoor Air Quality
- Discreet Vent Termination minimizes disruptions
to the home’s exterior
- Filtered Air System
- Standard Unit Vents Through a Wall up to 10 inches deep and up to 32 inches with the
- DVT-2 accessory kit
- Extended Horizontal and Vertical Vent Run
- Accessories for 20,000 and 40,000 Btu Wall
- Furnaces allow up to 15 feet of venting
- Built-in Blower Enhances Heat Distribution for Added Comfort
- Hot Surface Ignition Ensures Quiet Starts and
- Saves Gas – Up To $20 Per Month
- Three Btu Sizes to Heat Any Space
- Peace of Mind Safety Features Built into Furnace
- Mobile Home Certified
Options & Accessories
TRW Wireless Remote Wall Thermostat
- This convenient wall thermostat puts you in control, allowing you to adjust your gas log settings from an easily accessible wall switch. Empire Comfort Systems makes your life simple with the added luxury of fireplace accessories that improve the quality of your gas log experience.
TDV1 Temperature Wall Thermostat-Digital
- Wall Thermostat, Digital, Wire
Features:
-
Type: Digital Wire Wall Thermostat
-
Weight: 1.00 lbs
- For use with your Empire High-Efficiency PVS18 and PVS35 UltraSaver90 Plus Heating Systems.
Manuals:
PRODUCT DESCRIPTION
