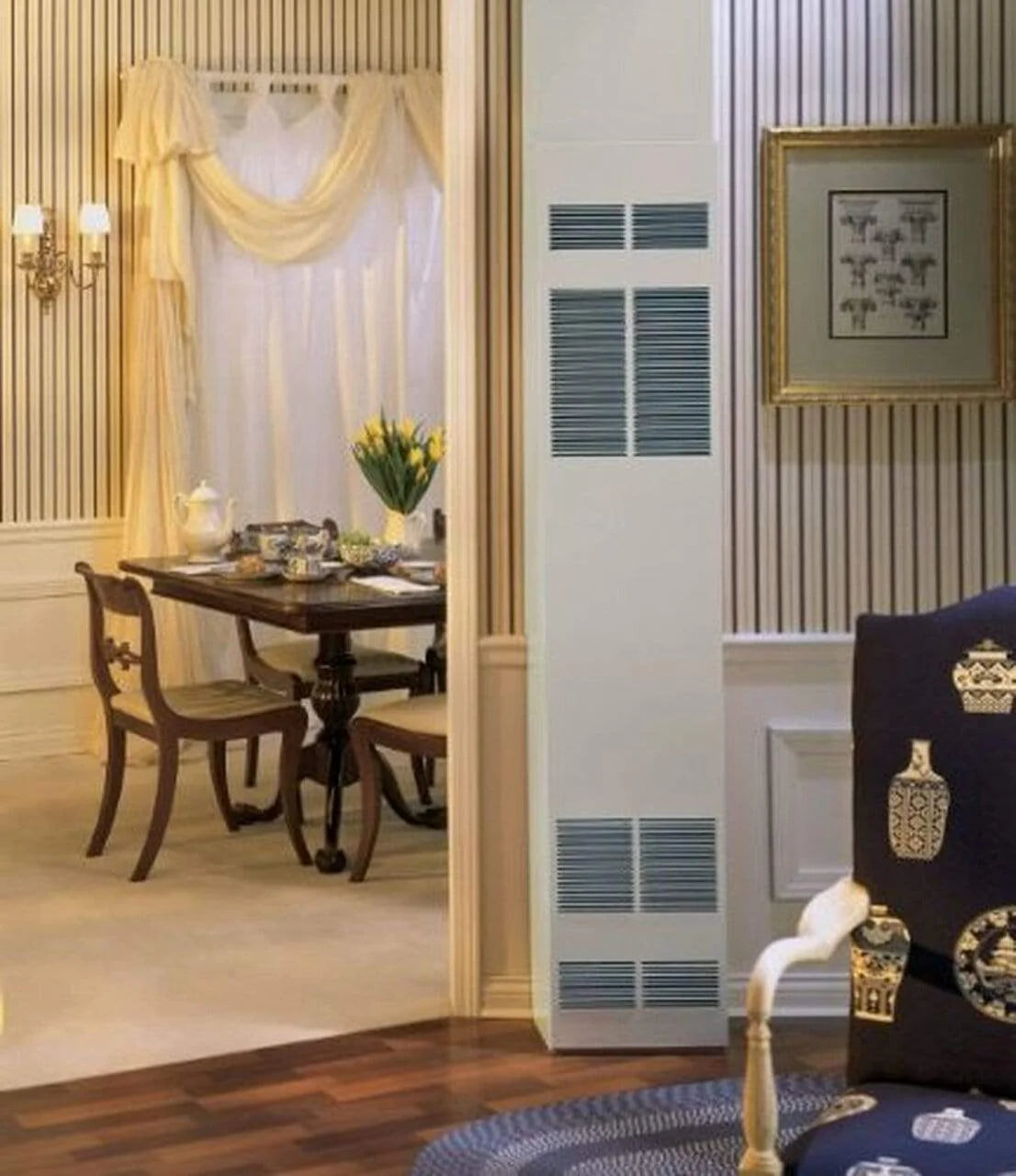

Empire Wall Furnace, Vented Counterflow, 24V without Thermostat, 40,000 Btu/Standing Pilot
Transform your home with the Empire Wall Furnace, delivering unparalleled warmth at a fraction of the cost of electric heat. Featuring easy-to-remove front panels for simple cleaning and maintenance.
Choose from a reliable standing pilot with matchless piezo ignition or cutting-edge electronic ignition. Experience ultimate comfort and efficiency today!
| Specifications |
Details |
| Color Cabinet and Front Panels |
Beige |
| BTU Input |
40,000 |
| Blower Output (Cu. Ft./Min) |
275 |
| Width |
14 1/8” |
| Depth |
10 3/8” |
| Height |
72 1/2” |
| Shipping Weight |
110 lbs |
| Works with Manual, Toggle Switch, Thermostat, Wall Switch, or Remote Control |
Yes |
| Minimum Clearances to Combustibles (From Top to Ceiling) |
4” |
| Minimum Clearances to Combustibles (From Each Side) |
4” without register, 18” with SOR1 |
| Bottom of Unit to Wood Floor |
Zero |
| Center of Vent Connector Opening to Combustibles |
1 3/4” |
| Depth Unit May Be Recessed |
9 1/2” |
| Type of Gas (State on Order) |
Natural Gas / Propane |
| Iron Pipe Size (N.P.T.) |
1/2” |
| Wall to Valve Inlet |
7 3/4” |
| Floor Covering to Valve Inlet |
4” |
| Size of Flue Collar |
4” Oval |
| Size of Flue with Oval-to-Round Adapter |
4” Round |
| Minimum Vent Opening in Ceiling for Oval Type “B” Flue Pipe |
4 1/2” x 9 1/4” |
| Minimum Vent Opening for Round Type “B” Flue Pipe |
6 1/2” Diameter |
| Safety Controls |
Pilot and Main Burners Include Automatic Shut-off |
| Warranty |
10-year limited (combustion chamber), 1-year limited (all other parts) |
Features:
- Up to 76% A.F.U.E.
- Choose Standing Pilot or Electronic Intermittent Pilot (saves even more energy)
- Front Panels Removed for Cleaning and Servicing
- Counterflow Blower Circulates Warm Air at Floor Level
- Multi-Room Heating Capacity with Optional Outlet Kits
- Control Options: Manual; Toggle Switch; Thermostat; Wall Switch; or Remote Control
- Made in USA
OPTIONS AND ACCESSORIES
TRW Wireless Wall Thermostat
- This convenient wall thermostat puts you in control, allowing you to adjust your gas log settings from an easily accessible wall switch. Empire Comfort Systems makes your life simple with the added luxury of fireplace accessories that improve the quality of your gas log experience.
T24V 24-Volt Wall Thermostat Direct-Vent Wall Furnace Accessory
- Thermostats make a heating appliance more efficient, more precise, and easier to control. That's the concept behind this Empire 24-Volt Wall Thermostat, too. It takes your Empire High-Efficiency Direct Vent Wall Furnace and makes it a more accurate and effective heating tool in your home. Get everything you want to out of your favorite appliance by adding this simple thermostat to the mix
SOK1 10" Side Outlet Kit Direct-Vent Counterflow Wall Furnace Accessory
- For both the direct vent and conventional vent counterflow wall furnaces, this side outlet kit allows heat to disperse from the side of the furnace cabinet. It does require the side outlet register (SOR-1 sold separately) to redirect the heat flow.
ROK1 10" Rear Outlet Kit Direct Vent Counterflow Furnace Accessory
- Empire knows that one of the biggest frustrations encountered by individuals that are trying to install a heating device into their home is the almost overwhelming number of add ons that need to be purchased and then installed. Their Direct Vent Counterflow Furnace 10 Inch Rear Outlet Kit is designed to be easily installed and immensely helpful in the process of trying to facilitate your furnace as it tries to keep you and your home warm during the winter.
SOR1 Side Outlet Register Direct-Vent Counterflow Wall Furnace Accessory
Features:
-
Type: Register
-
Side: Outlet Register
-
Fits DVC-35SPP, DVC-35IP, DV-55SPP and DV-55IP
Empire Vent Enclosure for FAW40
FVE24DB:
- This 24" Vent Enclosure, for the FAW-40-SPP and FAW-40-IP Counterflow Wall Furnace, covers the venting from the top of the FAW-40 to the ceiling. This accessory covers a spanned height up to 24". Perfect for use in rooms with ceilings up to 96 1/2" in height.
FVE34DB:
- This 34" Vent Enclosure, for the FAW-40-SPP and FAW-40-IP Counterflow Wall Furnace, covers the venting from the top of the unit to the ceiling. This accessory covers a spanned height up to 34". Perfect for use in rooms with ceilings up to 106 1/2" in height.
FVE46DB:
- This 46" Vent Enclosure, for the FAW-40-IP and FAW-40-SPP Counterflow Wall Furnace, covers the venting from the top of the unit to the ceiling. This accessory covers a spanned height up to 46". Perfect for use in rooms with higher ceilings - up to 118 1/2" in height.
Double Wall Oval-to-Round Flue Adapter
- The Empire DV-648 is an oval-to-round flue adapter. It accepts a 4" oval flue collar and converts it to a 4" round flue vent. This transition allows for an additional 4" round piping to be added easily.
